Summary:

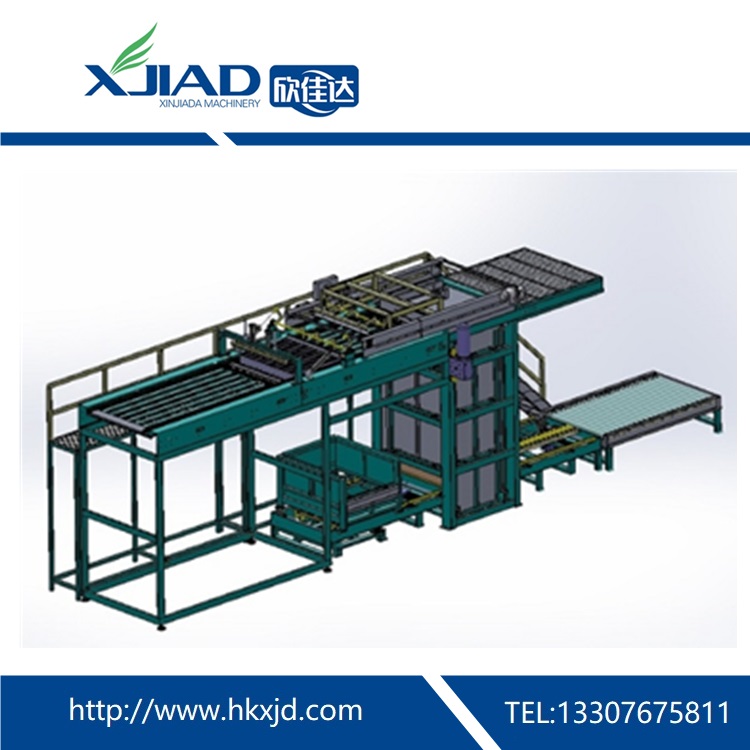

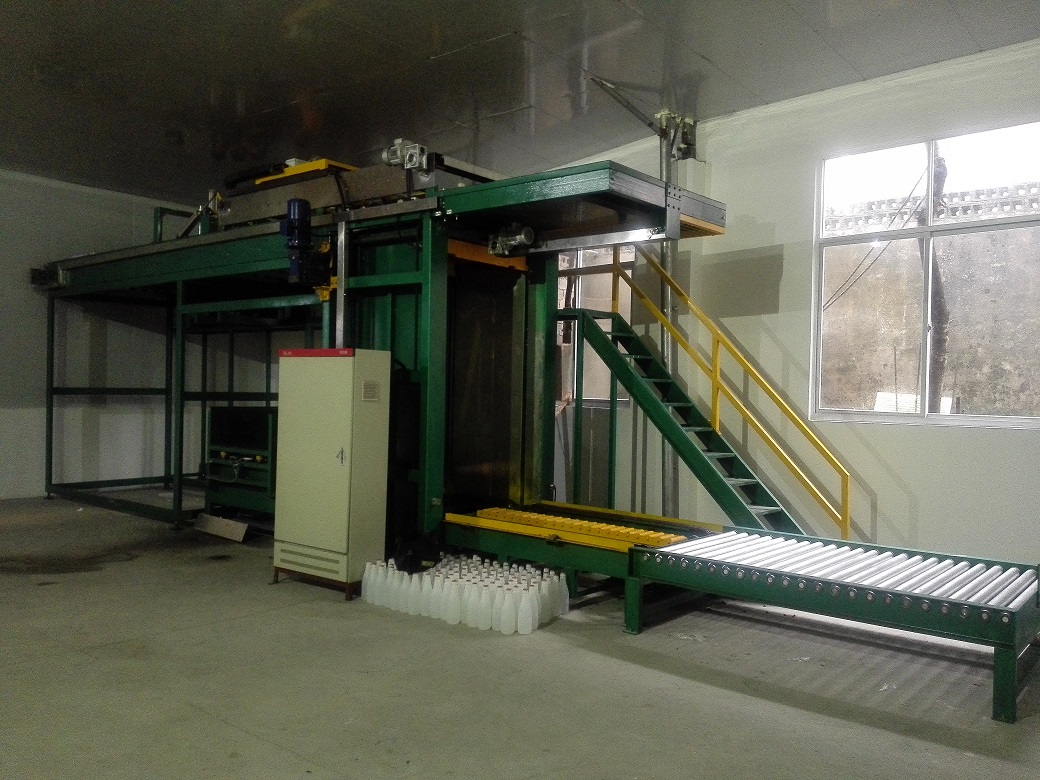

In order to inspect and eliminate the quality of products. Most of the canned food factory will palletize the products for 5-7days with temperature 36-38℃ in the food warehouse to inspect the quality after sterilization and cooling. Filled can & bottle palletizer mainly use for automatic loading the canned food & beverage onto the pallet, then forklift is easy to move the finished products to appointed heat preservation warehouse, greatly improve the operation efficiency, saving manpower. Uniform palletizing save the space, and reduce the time of loading. Finish heat preservation test, then use filled can depalletizer unload the products to the production line again for code printing and packing. Replace traditionally manual loading, greatly saves the manpower, improve production efficiency.

Device configuration:

1. Automatic pallet sending.

2. Automatic pallet hoisting.

3. Automatic can sorting.

4. Automatic can holding deviec.

5. Adjustable tray structure.

6. Empty pallet conveyor.

7. Automatic discharge interlayer board.

8. Adopt MITSUBISHI (MITSUBISHI) automatic PLC programmable computer controller, (SICK) photoelectric switch and other famous brand products, equipment stability, superior performance.

Technical parameters:

1. Production capacity: 300 ~ 800 cans per minute;

2. Applicable range: all kinds of tinplate cans, aluminum cans, glass bottles, etc.

3. Applicable size: diameter of 50 mm and 153 mm;

4. Applicable height: 50 mm to 270 mm

5. Height of cans be palletized: 2400 mm size, suitable pallet 1100 mm x 1400 mm or 1000 mm x 1200 mm;

6. Overall dimensions: length 8500 mm x 2300 mm x 2300 mm wide;

7. Dynamic parameters: 3 x 380 v 7 kw;

8. Using compressed air: 0.6 MPa, 0.1 L/min
